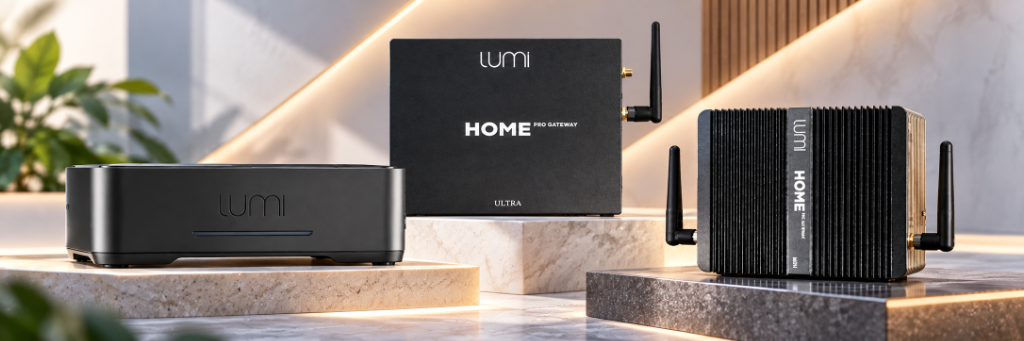

Lumi Home Pro
Intelligent Central Automation Gateways engineered for reliable, centralized smart-home and building automation control.
Home Pro Series Hardware Matrix
Built with local processing, expandable storage, high-speed networking, and multiple connectivity options, the Home Pro range delivers a scalable platform for different automation requirements.
| Model | Item Code | Processor | RAM | Storage | Dimensions | Enclosure |
|---|---|---|---|---|---|---|
| Lumi Home Pro Mini | LMCTM | Intel N2830 (Up to 2.41 GHz) | 4GB DDR4 | 128GB SSD | 135 � 125 � 40 mm | Aluminium |
| Lumi Home Pro Mini Plus | LMCTMP | Intel N2830 (Up to 2.41 GHz) | 8GB DDR4 | 256GB SSD | 135 � 125 � 40 mm | Aluminium |
| Lumi Home Pro | LMCT | Intel Jasper Lake N5105 (Up to 2.9 GHz) | 8GB DDR4 | 128GB SSD | 128 � 128 � 51.5 mm | Plastic |
| Lumi Home Pro Plus | LMCTP | Intel Jasper Lake N5105 (Up to 2.9 GHz) | 8GB DDR4 | 128GB SSD | 128 � 128 � 51.5 mm | Plastic |
| Lumi Home Pro Ultra | LMCTU | Intel i7 (Up to 4.7 GHz) | 16GB DDR4 | 256GB SSD | 150 � 135 � 45 mm | Aluminium |
Comprehensive Model Architecture
Lumi Home Pro Mini
Compact Central Automation Gateway � Item Code: LMCTMThe Lumi Home Pro Mini is a compact automation gateway designed for installations requiring reliable local processing in a space-efficient form factor. It combines an Intel N2830 processor, 4GB DDR4 memory and 128GB SSD storage with Gigabit Ethernet, Wi-Fi and multiple USB interfaces.
Key Features- Intel N2830 Processor
- 4GB DDR4 RAM
- 128GB SSD Storage
- Gigabit Ethernet (1000M)
- 802.11 b/g/n Wi-Fi
- 2 � USB 2.0 + 2 � USB 3.0
- Aluminium Enclosure
- Compact 135 � 125 � 40 mm
| Processor | Intel N2830 |
| Processor Speed | 2.16 GHz (Max 2.41 GHz) |
| RAM | 4GB SO-DIMM DDR4 |
| Storage | 128GB SSD |
| Ethernet | 10/100/1000M Self-Adaption |
| Wi-Fi | 802.11 b/g/n |
| USB Ports | 2 � USB 2.0 + 2 � USB 3.0 |
| Dimensions | 135 � 125 � 40 mm |
| Material & Weight | Aluminium (436 g) |
| Power Dissipation | 10 W |
Lumi Home Pro Mini Plus
More Memory. More Storage. More Capability � Item Code: LMCTMPThe Lumi Home Pro Mini Plus builds on the compact Mini platform with increased memory and storage capacity. With 8GB DDR4 RAM and 256GB SSD storage, it provides additional resources for larger and more demanding local automation installations while maintaining the same compact aluminium enclosure.
Key Features- Intel N2830 Processor
- 8GB DDR4 RAM
- 256GB SSD Storage
- Gigabit Ethernet (1000M)
- 802.11 b/g/n Wi-Fi
- 2 � USB 2.0 + 2 � USB 3.0
- Aluminium Enclosure
- Compact 135 � 125 � 40 mm
| Processor | Intel N2830 |
| Processor Speed | 2.16 GHz (Max 2.41 GHz) |
| RAM | 8GB SO-DIMM DDR4 |
| Storage | 256GB SSD |
| Ethernet | 10/100/1000M Self-Adaption |
| Wi-Fi | 802.11 b/g/n |
| USB Ports | 2 � USB 2.0 + 2 � USB 3.0 |
| Dimensions | 135 � 125 � 40 mm |
| Material & Weight | Aluminium (436 g) |
| Power Dissipation | 10 W |
Lumi Home Pro
Powerful Local Automation Gateway � Item Code: LMCTThe Lumi Home Pro delivers a higher-performance processing platform with an Intel Jasper Lake N5105 processor, 8GB DDR4 memory and 128GB SSD storage. Its compact enclosure provides a practical solution for centralized automation installations requiring enhanced processing capability and reliable network connectivity.
Key Features- Intel Jasper Lake N5105 Processor
- 8GB DDR4 RAM
- 128GB SSD Storage
- Gigabit Ethernet
- External-Antenna Wi-Fi
- 2 � USB 2.0 + 2 � USB 3.0
- Compact 128 � 128 � 51.5 mm
- Sleek Enclosure (386 g)
| Processor | Intel Jasper Lake N5105 |
| Processor Speed | 2.0 GHz (Burst 2.9 GHz) |
| RAM | 8GB SO-DIMM DDR4 |
| Storage | 128GB SSD |
| Ethernet | 10/100/1000M Self-Adaption |
| Wi-Fi | 802.11 b/g/n (External Antenna) |
| USB Ports | 2 � USB 2.0 + 2 � USB 3.0 |
| Dimensions | 128 � 128 � 51.5 mm |
| Material & Weight | Plastic Enclosure (386 g) |
| Power Dissipation | 10 W |
Lumi Home Pro Plus
High-Performance Automation with Dual Gigabit LAN � Item Code: LMCTPThe Lumi Home Pro Plus features the Intel Jasper Lake N5105 processor combined with 8GB DDR4 RAM, 128GB SSD storage and dual Gigabit Ethernet ports. Designed for complex networking environments requiring separated IoT and control subnets.
Key Features- Intel Jasper Lake N5105 Processor
- 8GB DDR4 RAM
- 128GB SSD Storage
- Dual Gigabit Ethernet (2 � 1000M)
- External-Antenna Wi-Fi
- 2 � USB 2.0 + 2 � USB 3.0
- Isolated Subnet Support
- Compact 128 � 128 � 51.5 mm
| Processor | Intel Jasper Lake N5105 |
| Processor Speed | 2.0 GHz (Burst 2.9 GHz) |
| RAM | 8GB SO-DIMM DDR4 |
| Storage | 128GB SSD |
| Ethernet | 2 � 1000M Dual Gigabit LAN |
| Wi-Fi | 802.11 b/g/n (External Antenna) |
| USB Ports | 2 � USB 2.0 + 2 � USB 3.0 |
| Dimensions | 128 � 128 � 51.5 mm |
| Material & Weight | Plastic Enclosure (386 g) |
| Power Dissipation | 10 W |
Lumi Home Pro Ultra
Flagship Automation Computing Architecture � Item Code: LMCTUThe Lumi Home Pro Ultra represents the pinnacle of centralized automation hardware. Powered by a high-performance Intel Core i7 processor (up to 4.7 GHz) with 16GB DDR4 RAM and 256GB SSD in an anodized aluminium chassis. Engineered for ultra-large residential estates and multi-zone automation ecosystems.
Key Features- Intel Core i7 Flagship Processor
- 16GB High-Speed DDR4 RAM
- 256GB Ultra SSD Storage
- Dual Gigabit Ethernet (2 � 1000M)
- Wi-Fi 6 / 802.11 a/b/g/n/ac
- 4 � USB 3.0 High-Speed Ports
- Precision Anodized Aluminium
- 150 � 135 � 45 mm (450 g)
| Processor | Intel Core i7 (Up to 4.7 GHz) |
| RAM | 16GB DDR4 SO-DIMM |
| Storage | 256GB SSD |
| Ethernet | 2 � 10/100/1000M Self-Adaption |
| Wi-Fi | 802.11 a/b/g/n/ac (Wi-Fi 6) |
| USB Ports | 4 � USB 3.0 High-Speed |
| Dimensions | 150 � 135 � 45 mm |
| Material & Weight | Anodized Aluminium (450 g) |
| Power Dissipation | 15 W |
| Privacy Guarantee | 100% Local � No Cloud Tracking |
