Android Display

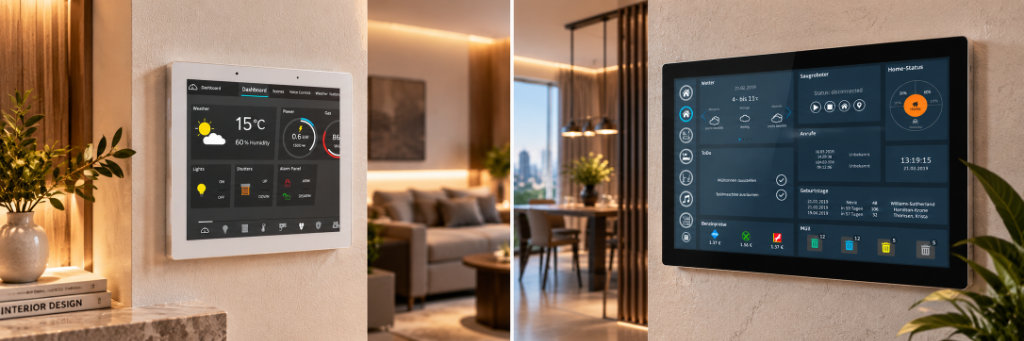

High-Performance 4" & 10" POE Smart Android Control Panels for Connected Spaces, Automation & Centralized Dashboards
Choose the Right Smart Panel
Whether you require a compact wall-embedded touch interface for individual rooms or a high-brightness 10" large-format panel for central facility monitoring, our POE Android displays deliver responsive, industrial-grade performance.
| Specification | LME4AD (4" POE Android Tablet) | LME10AD (10" POE Android Tablet) |
|---|---|---|
| Display Size & Type | 4" IPS (480 � 480) | 10" IPS (800 � 1280, 500-nit) |
| Touch Interface | Capacitive Touch Panel | 10-Point Capacitive Touch |
| Processor (CPU) | RK3566 Quad-Core Cortex-A55 (Up to 1.8 GHz) | RK3566 Quad-Core Cortex-A55 (Up to 1.8 GHz) / Optional PX30 |
| Operating System | Android 11 | Android 11 |
| Memory & Storage | 2 GB RAM + 16 GB ROM | 4 GB RAM + 16 GB ROM |
| Power over Ethernet (POE) | IEEE 802.3af Supported | Supported via RJ45 + DC 12V Input |
| Ethernet & Wireless | 10/100 Mbps, Wi-Fi 802.11 b/g/n, BT 4.0 | 10/100 Mbps, Wi-Fi 802.11 b/g/n (Opt. 5GHz), BT 4.0 |
| Fieldbus & Connectivity | 1 � RS485, 1 � USB Type-C | 1 � RS485, 1 � USB Type-C |
| Audio Hardware | 1 � Built-in Speaker, 2 � Microphones | 1 � Built-in Speaker, 1 � Microphone |
| Housing & Mount | In-wall & Embedded (86 � 85 � 37 mm) | Industrial Metal Housing, Wall / Panel Mount |
| Best For | Compact Room & Zone Control | Central Dashboards & Advanced Automation |
Hardware Models & Architectural Applications
4" POE Android Tablet (LME4AD)
The LME4AD is a compact and versatile smart control panel designed for modern automation and connected environments. Powered by Android 11 and an RK3566 Quad-Core Cortex-A55 processor, it delivers responsive performance in a space-saving 86mm form factor.
With Power over Ethernet (POE IEEE 802.3af), Wi-Fi, Bluetooth 4.0, RS485 and capacitive touch, the LME4AD provides flexible connectivity for smart home control, hotel room interfaces, and building automation without complex external power cabling.
Key Features & Highlights:
- 4-inch 480 � 480 IPS Display with capacitive feather-touch panel
- Android 11 OS with RK3566 Quad-Core Cortex-A55 (up to 1.8 GHz)
- 2 GB RAM + 16 GB ROM for smooth UI responsiveness and app execution
- Power over Ethernet (IEEE 802.3af) & 10/100 Mbps RJ45 Ethernet
- RS485 Communication Port for lighting, HVAC, and Modbus integration
- Built-in Speaker & Dual Microphones for voice intercom and notifications
- Type-C Interface and optional ambient light sensor
- In-Wall & Embedded Installation (86 � 85 � 37 mm) in White or Black finish
- Operating temperature range: -10�C to 60�C with multi-language support
Applications:
LME4AD Technical Specifications
| Model Code | LME4AD |
| Display Size | 4.0 Inch IPS |
| Resolution | 480 � 480 px |
| Touch Panel | Capacitive Touch |
| Processor | RK3566 Quad-Core Cortex-A55 |
| CPU Clock | Up to 1.8 GHz |
| OS | Android 11 |
| RAM / ROM | 2 GB RAM / 16 GB ROM |
| POE Standard | IEEE 802.3af (RJ45) |
| Ethernet | 10/100 Mbps |
| Wireless | Wi-Fi 802.11 b/g/n, BT 4.0 |
| Serial Bus | 1 � RS485 Interface |
| USB Port | 1 � USB Type-C |
| Audio | 1 � Speaker, 2 � Microphones |
| Dimensions | 86 � 85 � 37 mm |
| Installation | In-Wall & Embedded Mount |
| Color Options | White / Black |
10" POE Android Tablet (LME10AD)
The LME10AD is a powerful, large-format wall-mounted smart display engineered for intuitive master dashboards, building management systems (BMS), and centralized multi-zone automation.
Featuring a vibrant 10-inch IPS display with 800 � 1280 resolution, 10-point capacitive multi-touch, and 500-nit high brightness, the LME10AD ensures unmatched visibility in well-lit architectural spaces. Encased in a rugged metal housing with POE and DC 12V dual power options.
Key Features & Highlights:
- 10-inch IPS High-Brightness Display (800 � 1280, 500-nit luminance)
- 10-Point Capacitive Multi-Touch with 218 � 135 mm active display area
- Android 11 OS powered by RK3566 Quad-Core Cortex-A55 up to 1.8 GHz
- 4 GB RAM + 16 GB ROM for high-density UI rendering and concurrent widgets
- Power over Ethernet (POE) + secondary 12V DC input for continuous power
- Wi-Fi 802.11 b/g/n (with optional 5 GHz Wi-Fi) & Bluetooth 4.0
- RS485 Serial Interface for direct automation system integration
- Premium Metal Housing with built-in set & restart functions
- Speaker & Microphone for VoIP door entry intercoms and alarms
Applications:
LME10AD Technical Specifications
| Model Code | LME10AD |
| Display Size | 10.0 Inch IPS (500 nit) |
| Resolution | 800 � 1280 px |
| Touch Panel | 10-Point Capacitive Touch |
| Active Area | 218 � 135 mm |
| Processor | RK3566 Quad-Core Cortex-A55 (1.8 GHz) |
| Opt. Processor | PX30 Quad-Core Cortex-A35 (1.5 GHz) |
| OS | Android 11 |
| RAM / ROM | 4 GB RAM / 16 GB ROM |
| POE & Power | POE (RJ45) + DC 12V Input |
| Ethernet | 10/100 Mbps |
| Wireless | Wi-Fi 802.11 b/g/n (Opt. 5GHz), BT 4.0 |
| Serial Bus | 1 � RS485 Interface |
| USB Port | 1 � USB Type-C |
| Audio | Built-in Speaker & Microphone |
| Enclosure | Precision Metal Case |
| Installation | Wall / Panel Surface & Flush Mount |
Key Architectural Advantages
Enterprise-grade Android touch hardware engineered for 24/7 continuous operation in luxury homes, smart offices, and hospitality complexes.
Single-Cable POE Power
IEEE 802.3af POE delivers stable DC power and high-speed local data over a single standard Cat6 cable, eliminating unsightly power adapters and high-voltage wall drops.
RK3566 Quad-Core Power
Cortex-A55 quad-core architecture with up to 4 GB RAM guarantees butter-smooth 60fps dashboard animations, rapid camera stream loading, and zero input lag.
Native RS485 Serial Port
Direct RS485 bus connectivity enables seamless communication with BACnet, Modbus RTU, HVAC fan coil controllers, and legacy automation sub-systems.
500-Nit Ultra-Bright IPS
Wide-viewing-angle IPS panels with up to 500-nit high brightness maintain crystal-clear visibility, rich colors, and deep contrast even in brightly lit rooms.
Built-in Speaker & Mics
Equipped with acoustic echo cancellation hardware, making the panels ideal for SIP video doorbells, room-to-room intercoms, and audio alerts.
In-Wall & Metal Chassis
Designed for aesthetic integration into residential and commercial architecture, offering standard backbox embedded mounting and durable metal housings.
